Multifunction TL25

DESCRIPTION

[90-60-244]

TPerfection, Aestheticism, Ergonomy and Simplicity.

Multifunction TL25 answers all your needs… Three LCD high definition screens offer great clarity for the selected functions even at wide viewing angles, at night and in day light with 25 mm high digits. It features 6 levels of red backlighting. The menus can be set in 6 different languages.

Connected to the TOPLINE bus, it can display all available channels. A full installation can consist of only one TL25 with the sensors required for racing data.

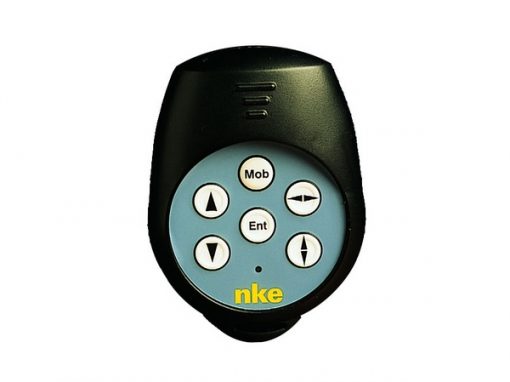

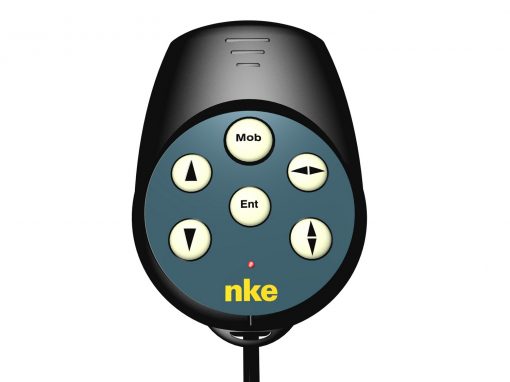

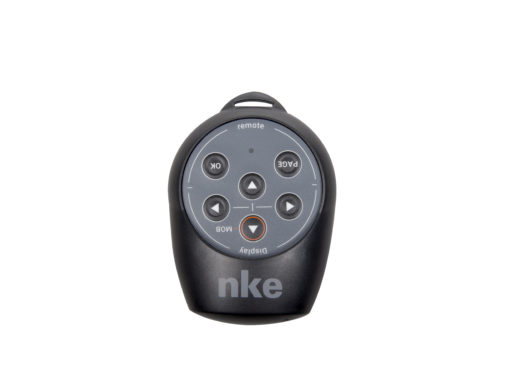

It can be installed on the mast or any convenient location in the cockpit. A remote control, wired or wireless gives access to all functions such as channels options, calibration settings or race timer.

Two bezel colours available : white [90-60-244] or carbon like [90-60-489]

test_03 CHARACTERISTICS

  • NMEA input for GPS interface
  • Power supply: 10 to 16VDC
  • Power consumption: 20mA without lighting, 70mA with lighting.
  • Waterproof protection : IP67
  • Weight: 1.3kg, cable included
  • Dimensions: H = 260mm; W = 156mm; D = 45mm
  • Operation temperature: -10°C to +50°C
  • Storage temperature: -20°C to +60°C
  • Horizontal reading angle > 120°
  • Vertical reading angle > 90°
  • Digit height : 25 mm for the value, 10 mm for unit and label.
  • Cable length: 6.10m

fonctionnalite_picto_03 FUNCTIONS

Standard functions

  • GPS: position, bearing and distance to waypoint, Course Over Ground and Speed Over Ground
  • Man Over Board: distance and bearing to event
  • Average boat speed and max boat speed (memorised)
  • High quality back lighting with 4 levels

Race functions

  • Target Boat Speed
  • Upwind performance
  • Optimum wind angle
  • Race timer with 2 preset schemes
