Fluxgate Compass

DESCRIPTION

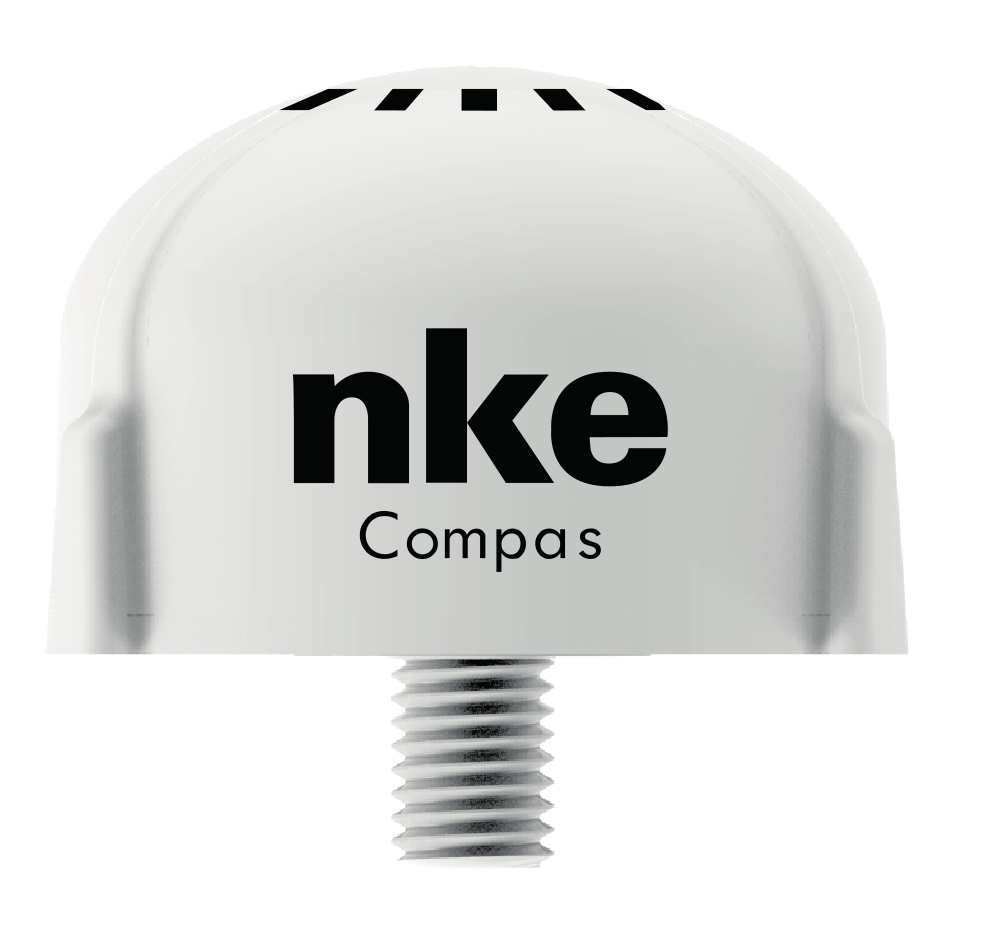

This fluxgate compass connects to the nke bus and it feeds the system with the magnetic compass heading value. The mounting location must be free from any magnetic influence (VHF, high power cables, radar, etc.). The 10° step compensation ensures an accurate heading. Compass heading reference is one of the key functions necessary for calculating true wind direction.

The fluxgate compass comes with a 6 meter TOPLINE cable and a bracket for bulkhead mounting.

test_03 CHARACTERISTICS

  • Dimensions (Ø x H): 70 x 41.8 mm
  • Consumption: 25 mA
  • Resolution: 1°
  • Weight: 200 g (without cable)
  • Cable: 6 m
  • Power supply: 10 to 16VDC
  • Consumption: 25mA – Résolution : 1°
  • Waterproof protection: IP67
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -20°C to +60°C
  • Ref. 90-60-452

fonctionnalite_picto_03 FUNCTIONS

A system that includes a speed sensor, a wind sensor and a fluxgate compass can process the data to display:

  • True Wind direction
  • VMG on the selected route,
  • Dead reckoning
  • bearing and distance to Man Over Board
